Burgtec Titanium Offset Shock Hardware

  Size/Colour RRP
Burgtec Titanium Offset Shock Hardware 19x6mm 19x6mm
$39.95
Burgtec Titanium Offset Shock Hardware 19x6/25.4x6mm 19x6/25.4x6mm
$79.95
Burgtec Titanium Offset Shock Hardware 19x8mm 19x8mm
$39.95
Burgtec Titanium Offset Shock Hardware 19x8mm (2pcs) 19x8mm
$79.95
Burgtec Titanium Offset Shock Hardware 21.8x8mm 21.8x8mm
$39.95
Burgtec Titanium Offset Shock Hardware 22x6mm 22x6mm
$39.95
Burgtec Titanium Offset Shock Hardware 22x6mm (2pcs) 22x6mm
$79.95
Burgtec Titanium Offset Shock Hardware 22x6/41x6mm 22x6/41x6mm
$79.95
Burgtec Titanium Offset Shock Hardware 22x8mm 22x8mm
$39.95
Burgtec Titanium Offset Shock Hardware 22x8mm (2pcs) 22x8mm
$79.95
Burgtec Titanium Offset Shock Hardware 28x8/30x8mm 28x8/30x8mm
$79.95
Burgtec Titanium Offset Shock Hardware 22x8/35x8mm 22x8/35x8mm
$79.95
Burgtec Titanium Offset Shock Hardware 22x8/40x8mm 22x8/40x8mm
$79.95
Burgtec Titanium Offset Shock Hardware 25.4x6mm 25.4x6mm
$39.95
Burgtec Titanium Offset Shock Hardware 25.4x8.1mm 25.4x8.1mm
$39.95
Burgtec Titanium Offset Shock Hardware 30x6mm 30x6mm
$39.95
Burgtec Titanium Offset Shock Hardware 30x8mm 30x8mm
$39.95
Burgtec Titanium Offset Shock Hardware 30x8mm (2pcs) 30x8mm
$79.95
Burgtec Titanium Offset Shock Hardware 30x8/35x8mm 30x8/35x8mm
$79.95
Burgtec Titanium Offset Shock Hardware 33x6mm 33x6mm
$39.95
Burgtec Titanium Offset Shock Hardware 33x8mm 33x8mm
$39.95
Burgtec Titanium Offset Shock Hardware 35x8mm 35x8mm
$39.95
Burgtec Titanium Offset Shock Hardware 40x8mm 40x8mm
$39.95
Burgtec Titanium Offset Shock Hardware 41x6mm 41x6mm
$39.95
Burgtec Titanium Offset Shock Hardware 41x8mm 41x8mm
$39.95

For years the offset hardware has been used covertly on World Cup circuit by many of the top riders. The offset hardware allows the head angle to be easily manipulated simply by shortening or lengthening the effective eye to eye of the shock.
In recent times as the trend leans towards steeper and faster tracks the bushes have been used to relax the head angle. This makes the bike feel more stable at speed and even more planted on steep sections by throwing the front wheel further forward. The bushes can be used in the opposite way to steepen the head angle to improve the bikes geometry for sprinting if the track is more pedalling orientated. This pitches the rider more to the front of the cockpit and more on top of the bars which is better for sprinting.
The Burgtec hardware allows between 1 and 1.5 degrees of angle alteration depending on the shock bolt size of your frame. 6mm frames will naturally get the greatest amount of alteration with the 8mm frames getting 1 degree.
Our hardware was used by Marc Beaumont when he won at Val Di Sol 2010 World Cup. After Marc’s victory more and more riders approached us about slacking there head angle through the Burgtec offset shock hardware. So we decided to make small production run. “The offset Hardware helped me to get The perfect position on my GT Fury, ready to go Win at Val di Sole and have my best year to date” said Marc.

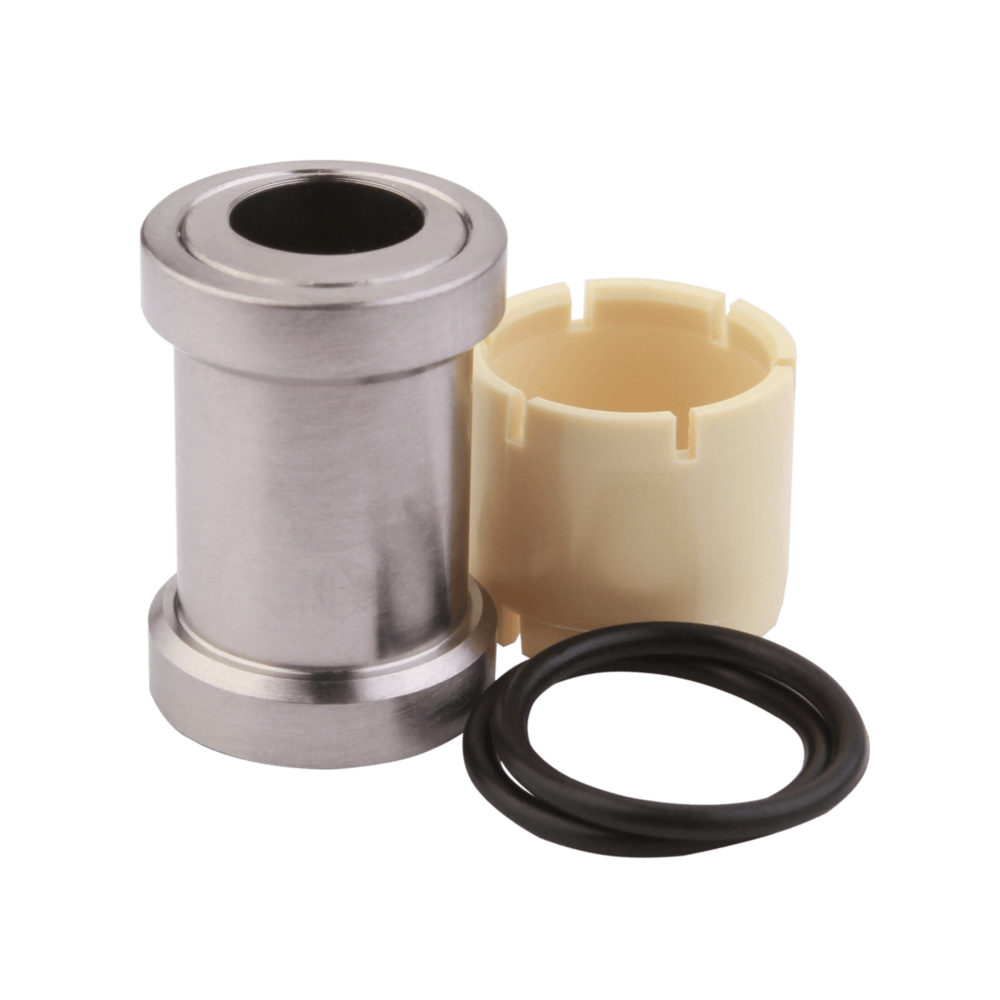

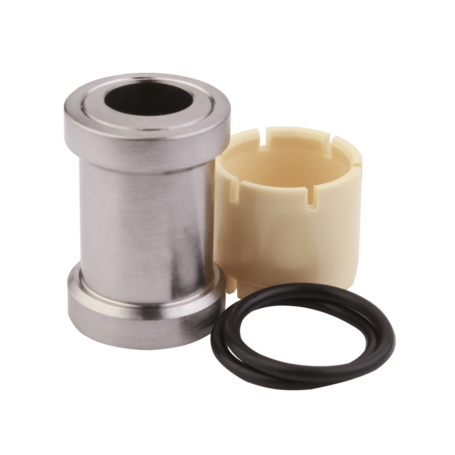

The hardware is made from grade 5 Titanium. Which is significantly lighter than its steel hardware counterpart but still maintaining the same excellent wear rating when compared to OE Aluminum ones; Approximately 3 times. The hardware comes supplied with a proprietary o-ring seal to keep out as much of the elements as possible. As well as DU bushes.
The Hardware will suit all ½” shock eyelets so Fox, Marzocchi, Rock Shox 08 onwards.
If your bike is not covered on the list. Try measuring your own bushes with help from the diagram below.

Brand Burgtec
SKU Size / Colour Barcode
BUR-7070 19x6mm
BUR-7012 19x6/25.4x6mm
BUR-7061 19x8mm
BUR-7001 19x8mm
BUR-7075 21.8x8mm
BUR-7062 22x6mm
BUR-7011 22x6mm
BUR-7004 22x6/41x6mm
BUR-7063 22x8mm
BUR-7002 22x8mm
BUR-7010 28x8/30x8mm
BUR-7013 22x8/35x8mm
BUR-7009 22x8/40x8mm
BUR-7072 25.4x6mm
BUR-7071 25.4x8.1mm
BUR-7073 30x6mm
BUR-7064 30x8mm
BUR-7003 30x8mm
BUR-7008 30x8/35x8mm
BUR-7074 33x6mm
BUR-7065 33x8mm
BUR-7069 35x8mm
BUR-7066 40x8mm
BUR-7067 41x6mm
BUR-7068 41x8mm
